Helix Helical Antenna

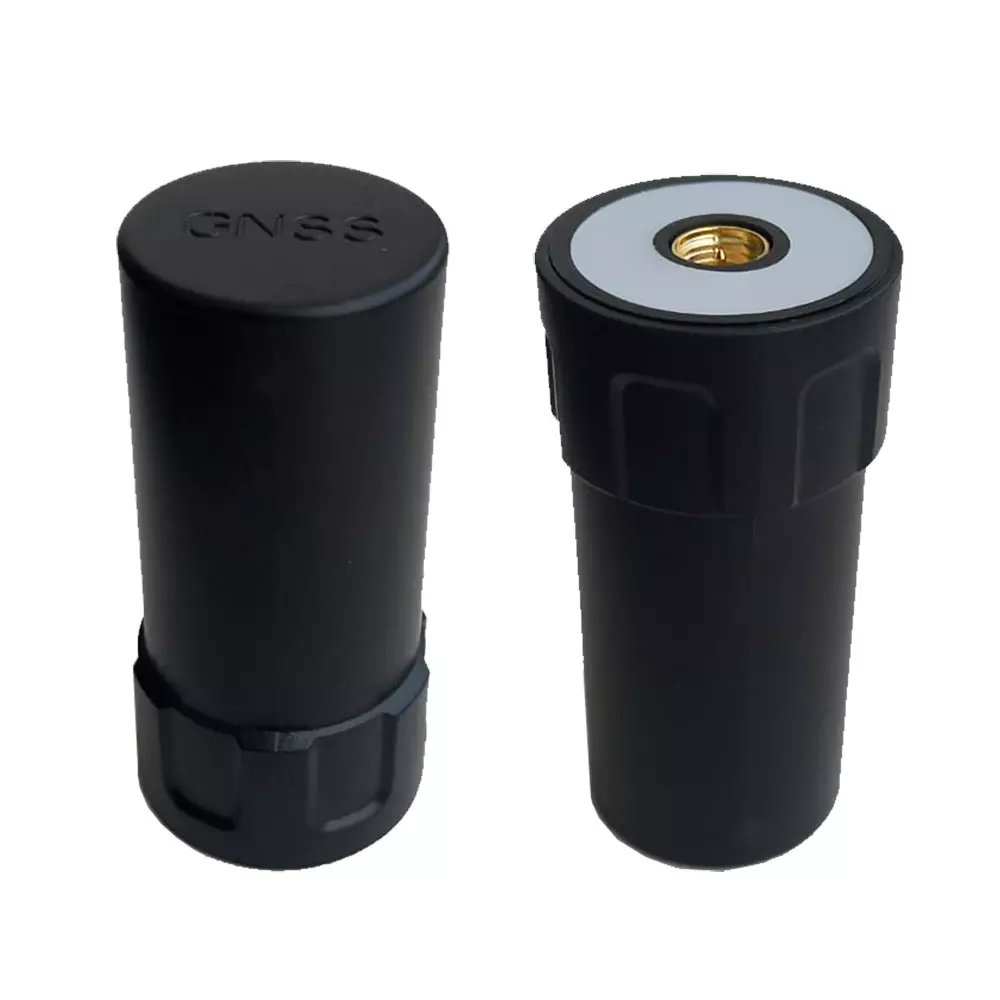

HELIX5 helical GNSS antenna. Multiband antenna for unmanned aerial vehicles (UAVs). Tracks L1 and L2 frequencies. Receives signals from all satellite constellations. Includes a connecting cable with an MCX connector.

• Constellations: GPS, GLONASS, BeiDou, and Galileo.
• GPS: L1: 1575.42 ± 1.023 MHz | L2: 1227 ± 1.023 MHz
• BeiDou: B1: 1561 ± 2.046 MHz | B2: 1207 ± 2.046 MHz | B3: 1268 ± 10.23 MHz
• GLONASS: L1 = 1602 + 0.5625*k (MHz) | L2 = 1246 + 0.4375*k (MHz)
• Galileo: E1: 1575
